Trailer flooring: chequer plate, timber and composite

A Victorian farm gate in the rain, late winter, the sort of afternoon where the gravel at the entrance is already a porridge. The owner-builder is loading treated pine posts, a roll of hinge-joint, and a bag of super that has split. The trailer floor is 17 mm hardwood that was proud three seasons ago. Today it is black at the screw lines, soft under the left ramp, and holding a puddle against the steel side rail because someone ran a bead of silicone along the edge "to keep the water out." The water is in. It has nowhere to go. The posts will get where they are going. The floor will not see a fourth winter.

Trailer flooring arguments in this country start at the material — chequer plate, hardwood, pine, composite, sometimes a plastic hollow deck — and skip the two things that actually kill floors: water that cannot leave, and fasteners that cannot be replaced. The deck is a wear part. Design it that way and any of the common materials will do a job. Design it as a sealed tub and the fancy plate becomes a rust farm.

This is a builds article for people who already know the ATM. If you do not, read the plate first. A steel floor you did not weigh is how payload disappears.

What you are asking a floor to do

A floor is a span, a grip, a hose-off surface, and sometimes a structural skin. Those jobs fight.

• Plant and tracked machines want steel where the tracks land, and a thickness that does not dish between crossmembers.
• Farm and general want replaceable timber or a composite you can cut, and a surface you can walk on wet.
• Boat wants something that dries, does not hold sand against a rail, and can take a bunk or a roller without rotting the chassis.
• Trade wants sweepable, lockable, and not so pretty that you are afraid of a dropped grinder.

Write the duty in a sentence before you write the material. The types hub is useful if you are still deciding what the trailer is for. The floor should follow that sentence, not a photo of an American toy hauler.

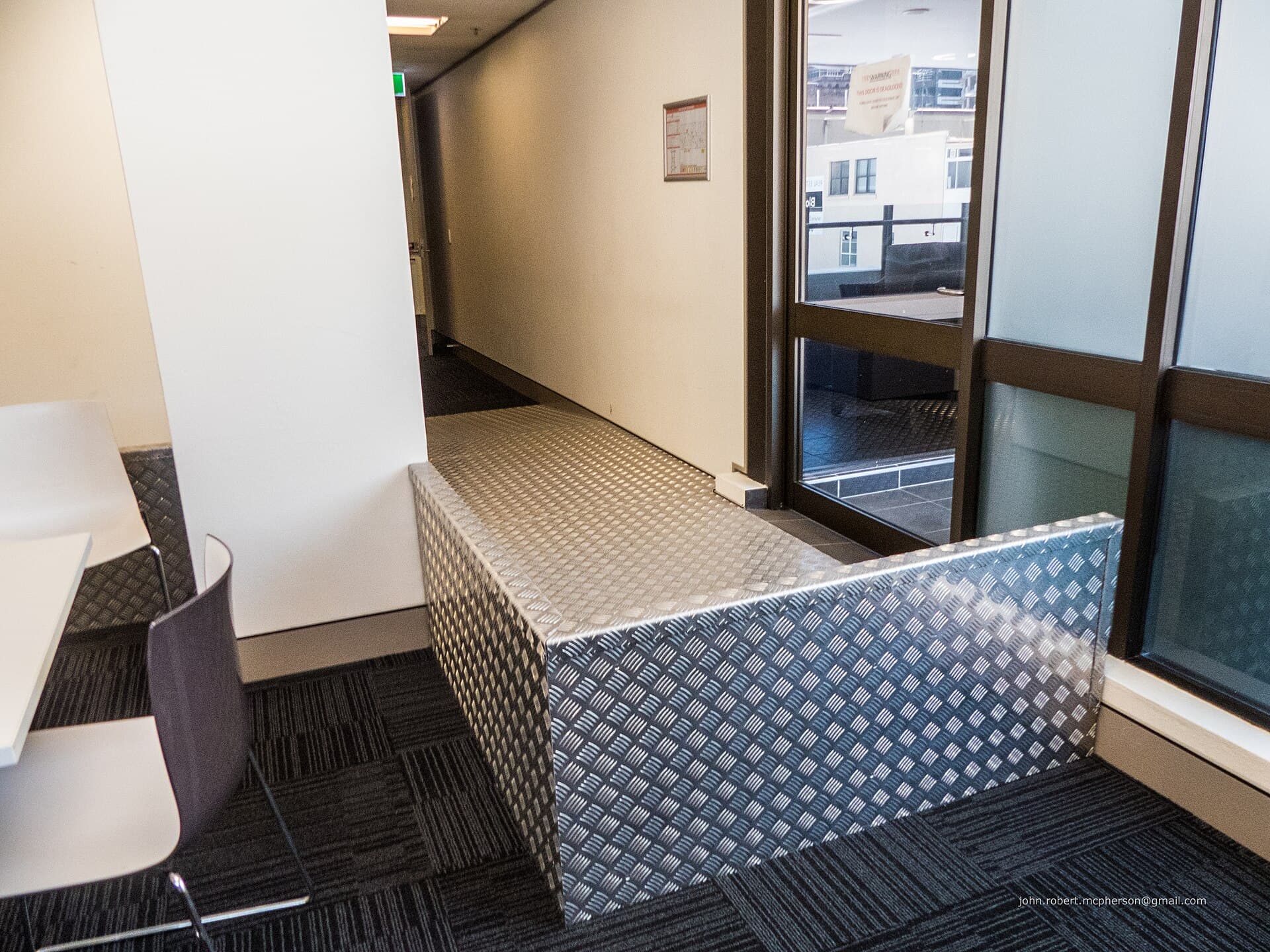

Chequer plate — steel and aluminium

Steel chequer is the Australian default for plant and for tradies who are tired of replacing boards. It grips, it takes a shovel, and it will carry a point load if the crossmembers are close enough. It also drums, it sweats underneath, and it rusts on both faces when wet dirt sits on the rail.

Do this if you specify steel plate:

• Leave a gap or drain path at the rails. A full stitch-welded tub looks neat and becomes a dam.
• Put the weld where you can paint or zinc it, or accept that the weld is a maintenance line.
• Match thickness to span. Thin plate on wide centres is a drum kit.
• Weigh it. Plate is a tare event. Payload is a remainder.

Aluminium chequer saves mass and dodges red rust on the walking surface. It does not dodge the steel frame. Isolate the sheet from the rail, use fasteners you can replace, and expect the top to mark. Coastal owners love it until the bolt holes go white and the steel lip goes brown. That couple is explained in steel versus aluminium. Isolation washers are cheaper than a new deck.

Chequer is a poor choice when you need to replace a section after a rot or a dropped load. You will be cutting and welding, not carrying a board out of the shed.

Field note from a Victorian gate: the best steel floors I crawl have a dirty gap at the rail and a hole at the front that dribbles after rain. The worst have a perfect silicone seal and a soft timber underneath that nobody has seen since the day it was fitted.

Timber — hardwood, pine, and the honesty of screws

Hardwood is still the right floor for a lot of Australian farm trailers. It is quiet, replaceable, kind on knees, and it tells you it is dying before it drops a post through onto the road. Pine is cheaper and faster to go. Treated pine lasts longer than raw and still wants to dry.

Timber fails at the fasteners and at the edge against steel. Steel screws into permanently damp hardwood will rust to nothing and leave you with a floor that walks. Coach screws or bolts you can undo are a maintenance system. A bead of sealant along the side rail is usually a way to hold water in the end grain.

Design habits that keep timber honest:

• Boards run so water can fall through or run off, not so the floor is a tray.
• A slight gap between boards. Swell is real after a Victorian winter.
• Crossmembers close enough that a soft board is a board, not a hole.
• No rubber mat left down in the wet season unless you like compost.

Replacement is the point. If the builder has buried the ends under a steel cap you cannot undo, you do not have a timber floor. You have a sealed sandwich. Ask for a floor you can re-deck with a drill and a Saturday.

Composite and plastic decks

Composite and hollow plastic decks turn up on boat trailers and on owners who are done with both rust and rot. The good ones drain, take a fastener, and do not hold sand against the chassis. The bad ones go brittle in UV, crush under a point load, and get replaced with plywood in a hurry.

Treat composite as a product, not as a material category. Ask who has used that exact deck in your climate for five years. A Gold Coast boat club is a better reference than a brochure. Watch the interface with steel bunks and winch posts — the deck can be fine while the steel eats itself underneath.

Composite does not free you from weighbridge arithmetic. Some of these decks are lighter than hardwood. Some are not, once you add the extra rails they need to stop a drum.

Drainage, fasteners and the chassis underneath

The floor is how the chassis stays wet or gets a chance. That makes flooring a finish decision as well as a deck decision.

A powder-coated rail under a sealed steel tub will blister from the dirt you cannot see. A galvanised C-channel under gapped hardwood will still be a channel in a decade. Galvanising versus powder should be read with the floor in mind, not after.

Fastener rules that save arguments:

• Isolate dissimilar metals.
• Use a pattern you can undo with the tools in the trailer.
• Do not earth the loom through a floor screw.
• Recheck U-bolts and floor bolts after the first loaded trip. Things settle.

Crossmember spacing is part of chassis design. A beautiful deck on lazy centres will dish, hold water, and then be blamed as a flooring failure.

Boat ramps, cattle and the other wet jobs

Boat trailers are a dunking machine. Carpeted bunks hold water against whatever they sit on. Rollers need a frame that drains. The floor, if there is a full deck at all, should be a wash-through, not a bathtub. Coastal salt will find the 7-pin, the bearings and the floor screws in the same week. The maintenance hub is the aftercare; the build is the drain holes.

Cattle and sheep crates add urine and a hose. Timber slats that can be pulled, or a steel floor with a fall and a front drain, will last. A sealed chequer tub in a cattle crate is how you pickle a chassis.

Fertiliser is its own climate. Super on steel chequer, left wet, is a chemistry experiment. Wash it. If you will not wash it, do not buy a floor you cannot afford to replace.

How to write the floor into the brief

Name the duty, the wash habit, and whether you want to re-deck without a welder. Then pick one:

• Hardwood boards, specified thickness, fastener type, gap, no sealed edges.
• Steel chequer, thickness, drain path, and a tare estimate you will verify.
• Aluminium chequer, isolation method, fastener spec, tare estimate.
• Composite, product name, UV story, and a local example.

Price the floor as a wear item in the build budget. The cheap floor is the one you can replace. The expensive floor is the sealed one that takes the chassis with it.

Next step: crawl your current trailer after the next rain and photograph where the water sits. Those photos are the specification. Take them to the fabricator, and keep the builds hub open if you still need to lock chassis and finish in the same brief.
